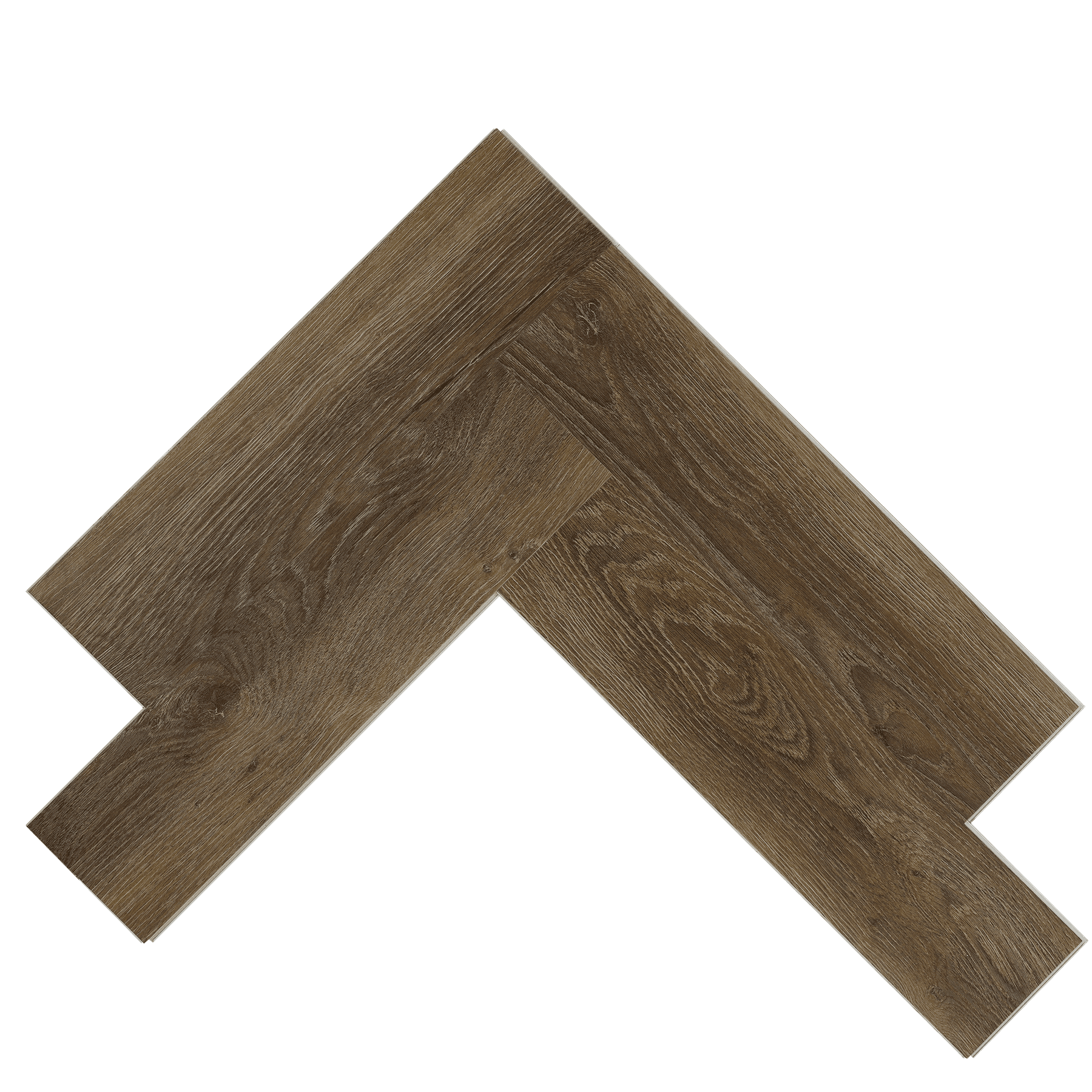

Chocolate Pine Herringbone
Heavy duty 6mm Luxury Vinyl Flooring with simple click installation and equipped with Family Guard™ Technology: 100% waterproof & enhanced dent resistant core complete with a 30 year domestic wear warranty.
Also available in:
6mm Straight Plank
FREE SAMPLE AVAILABLE
Choose any 3 samples for free!
Discount automatically applied at checkout.
Your Project
To ensure you get the perfect fit for your floor, it’s essential to measure your rooms accurately. Follow our simple guide to measure different room sizes for flooring.
Rectangular Rooms
Rectangular rooms can be calculated by multiplying the length by the width.
If your room is 5 metres long by 4 metres wide, the area will be 20 metres squared.
Therefore, you'll need a minimum of 20m2 of flooring.
Odd Shaped Rooms
For odd shaped rooms, you can easily calculate the area by splitting the room into rectangular sections, multiplying the length by the width of each section, and then adding all the areas together.
For the example above, the minimum amount of flooring needed would be 13.75m2.
Tips For Accurate Measurements
Why Add 10% Wastage?
Adding 10% extra is the industry standard in the UK and ensures you have enough material to handle cuts, tricky corners, doorways, and irregular room shapes. It’s a smart way to keep your project running smoothly!
Use Our Smart Calculator
Toggle on our smart calculator to double-check your order. It will calculate the exact m² you need and confirm if your selected packs already include enough wastage.
If not, the calculator will automatically add the extra required quantity, so you’re ready to add everything to your basket!Summary
Spend & Save
Up to an Extra 25% Off!
Ends Monday 17th March
Discount applied at checkout
Spend Over £300 for 15% Off
Spend Over £700 for 20% Off
Spend Over £1500 for 25% Off
£40 Delivery & 30 Day Returns
- £40 - Named Day Delivery:
Plan your diary ahead of time by picking your delivery date within 30 days. - £60 - Express Delivery:
For those urgent moments or last-minute jobs, get it fast! Choose your date within 1-3 days. - £20 - Parcel Delivery:
Schedule delivery within 1-3 days for small items only.
All services have 12pm daily cut off. See delivery information
30 day returns. See returns policy
Get more from your floor with built in Family Guard™ Technology . With this added value technology providing superior protection against everyday family life of children and pets, you can have confidence in your floor choice.
- 100% Waterproof
- Scratch & Dent Resistant
- Antimicrobial Coating
- 19db soundproofing properties
- Stain & fade resistant
100%
Waterproof
+50%
Denser than laminate
30 year
Warranty
100% Waterproof
Industry leading 'Stone Particle Composite' technology and a single layer of vinyl for added warmth provide improved performance compared to a standard vinyl floor & delivers a 100% waterproof rating. Perfect for bathrooms and kitchens.
Super Tough
A robust 0.55mm wear layer and anti-scratch coating combined with the 'Stone Particle Composite' core boasting an industry leading density means you can have confidence this Ovation Vinyl Flooring will outlast other vinyl floors and our stain and fade resistant finishes will keep it looking its best for longer.
Antimicrobial & Soundproofing
Prevent germs from spreading with our certified antimicrobial protection. The Antimicrobial coating is meticulously applied to defend against germs, inhibiting the ability for microorganisms to grow.
Stain & Fade Resistant
Relax...our Family Guard™ Technology will protect your floor from common stains. With fade protection from the sunlight your floor will keep its best look for longer.
Engineered to perform
Engineered with the latest in flooring technology Ovation luxury vinyl flooring is equipped with all the features you need for a high performance floor. Leading innovations in stone particle composite, SPC for short, combined with a vinyl surface rich with design and textures culminate in these beautiful but resilient floors.

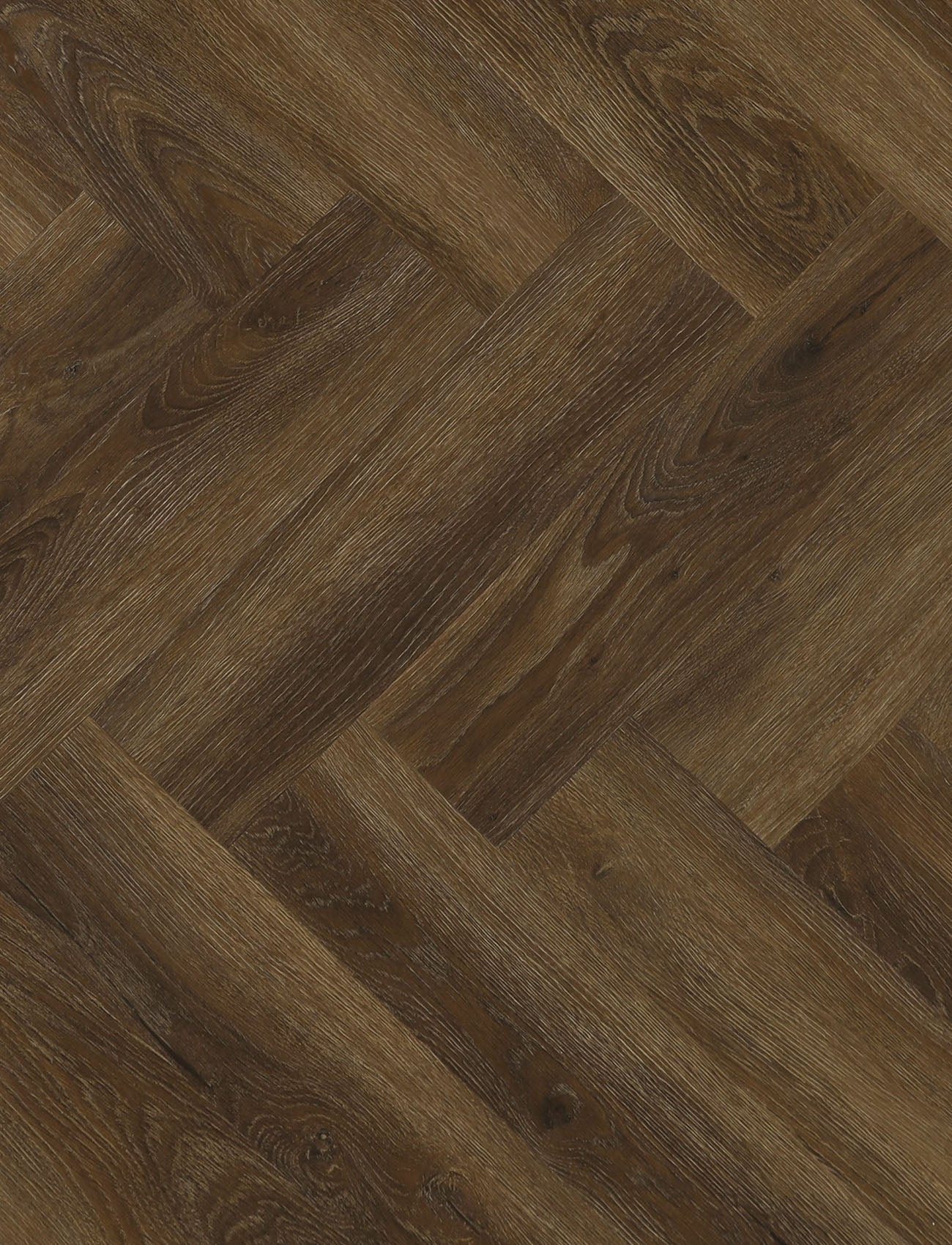

Herringbone Style
Looking to make a statement? Our 127mm wide herringbone planks are perfectly proportioned.
True to nature grain and texture follows the pattern of the decor to give a realistic look of a natural floor.
High quality decor designs showcasing the natural beauty through sophisticated grain patterns and characterful details
A simple to use but strong click system ensures your floor can be installed as a DIY project or by a professional
Product specification
Ovation Chocolate Pine Herringbone is packed with innovation and will stand up to any test you can throw at it.
More than just vinyl flooring, Ovation Floors are engineered for maximum performance, combining incredible designs with authentic surface textures to create a beautiful and highly durable floor.
It’s 100% waterproof, features simple click installation, comes with an attached underlay, and offers 19dB soundproofing for added comfort.
With a robust 0.55mm wear layer and an R10 slip rating for added safety, this floor is up to any task. Complete with a 30-Year Domestic and 10-Year Commercial warranty.
Our luxury vinyl herringbone flooring uses the click-lock system, meaning that it is suggested to be installed as floating floors. The edges, attached with a self-locking mechanism, offers a simple installation without using any glue or nails. For herringbone the flooring is installed with RR and LL panels.
The RR and LL panels differ in terms of which side you find the tongue and groove. Be sure to keep them separate during installation and follow the instructions below.
Installation Instructions
Start by placing two RR panels and three LL panels in the form of a V shape.
Connect the first RR panel into the first LL panel by angling it.
Connect the second LL panel on the left side of the V shape by angling it.
Alternate RR and LL panels until all five panels have been connected.
Mark a straight line from the lower left corner of the third LL panel through the top right corner of the first LL panel to form a triangle. Cut along the line with a saw.
Place triangles working your way outward from the centre of the wall.
Measure and cut the remaining two triangles and slot them between the walls and the other triangles.
Continue with the next row of RR panels. Connect the long side by angling it. Measure and cut the panel closest to the wall as necessary.
Slide the panels along its long side and connect the short side by snapping it using a tapping block.
Use LL panels for the next row. Measure and cut the panel closest to the wall as necessary. Continue alternating RR and LL panels for the remainder of the room.
After Installation
Retain excess planks in case of future repairs.
For more information, including pre-installation and subfloor requirements please click here
Technical Data
Discover Ovation - engineered for unbeatable performance in any space, from busy homes to high-traffic commercial areas. Built to last, it features a 0.55mm wear layer, a 35-year wear limited warranty, and our exclusive Family Guard™ Technology for superior durability and protection. With Ovation, you get the perfect balance of style, strength, and long-lasting peace of mind.
|
Category |
Specification | Standard |
| Type of Flooring | Luxury Vinyl SPC Flooring (Heterogen, PVC) |
EN 649 |
| Thickness |

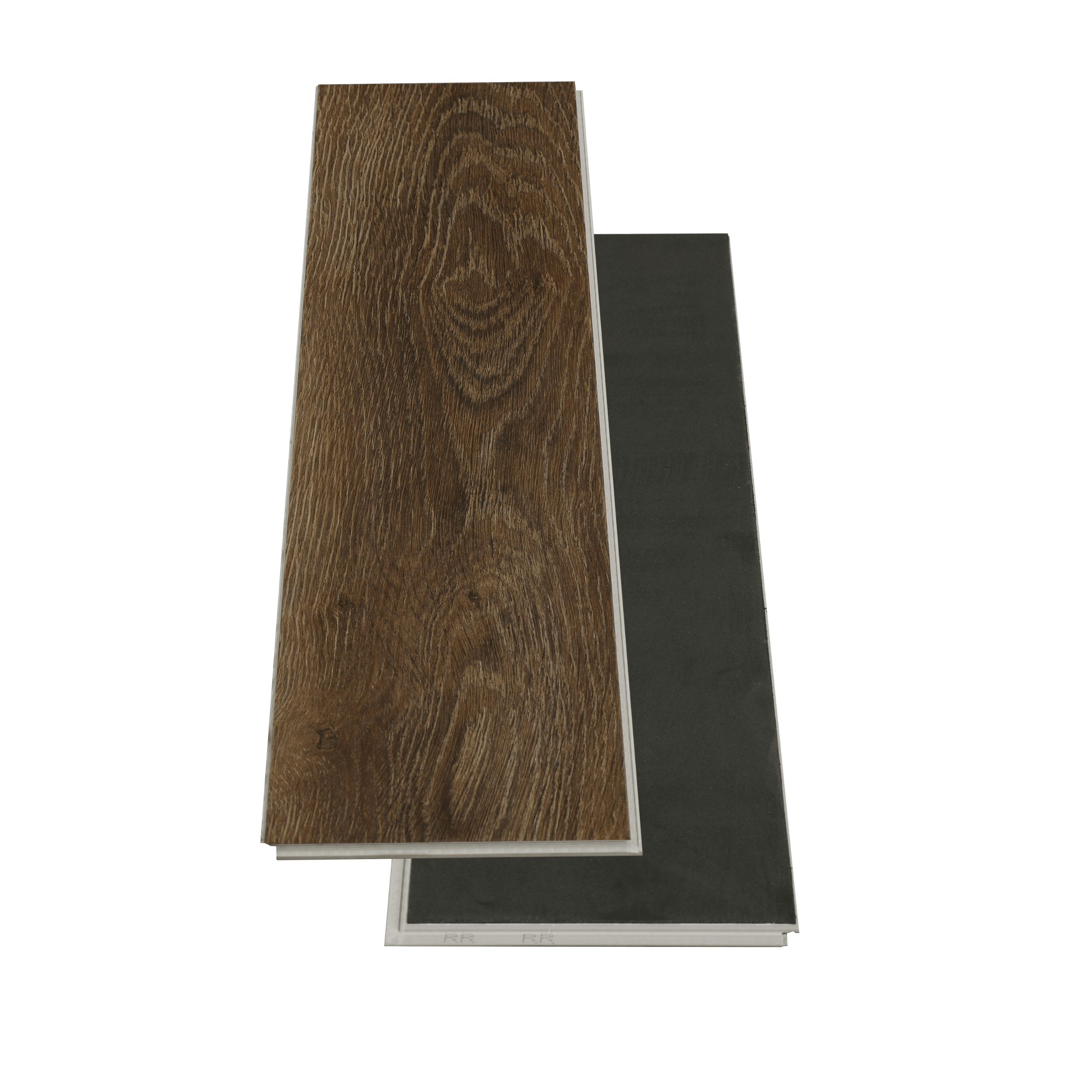

Plank - 6mm (5mm SPC Core + 1mm EVA Acoustic Underlay Pad) Herringbone - 6mm (5mm SPC Core + 1mm EVA Acoustic Underlay Pad) |
EN 428 |
| Includes Attached Underlay |
Yes |
|
| Wear Limited Warranty |
Residential (30 years Very Heavy Domestic) Commercial (10 years Heavy Commercial) |
|
| Surface Embossing | True touch (EIR) Embossed in Register |
|
| Size |
Plank - Herringbone - |
EN 427 |
| Bevelled Edges |
Micro bevel to 4 sides |
|
| Wear Layer Thickness |
0.55mm |
EN 429 |
| Performance Classification |
23, 33 |
EN 10582 |
| Weight per Pack |
Plank - 1 Herringbone - |
EN 430 |
| Number of Pieces and m2 per Pack |
Plank - Herringbone - |
|
| Number of Packs per Pallet and m2 per Pallet |
Plank - Herringbone - |
|
| Includes Family Guard™ Technology |
Yes |
|
| Water Resistance |
Conforms at 100% |
|
| Scratch Resistance |
MSR-A2 - High gloss and scratch resistance |
EN 16094: 2012 |
| Dent Resistant |
< 0.5mm |
ASTM F1914 |
| Impact Resistant |
>1700mm |
NALFA LF01-3.5 |
| Reduction Transmission Impact Noise |
> 19dB |
ISO 10140 |
| Anti-Microbial Protection |
Bacteria (ATCC #8739 & #6538) reduction > 99.9% |
ISO 22196-2011 |
| Anti-Slip Protection |
R10 |
DIN 51130:2014 |
| Fire Protection |
Bfl-s1, flame retardant, no / low smoke emission |
EN 13501-2010 |
| Suitable for Under Floor Heating |
Yes (In floor systems) |
|
| Cleaning and Maintenance |
Easy Care |
|
| Easy Click System |
ViLox Angle/Angle - Angle/Snap |
|
6mm Thick x 508mm Long x 127mm Wide
0.55mm
Yes - 5mm Board + 1mm Premium Underlay
All Rooms - Including Kitchens and Bathrooms
Very Heavy Domestic & Heavy Commercial Use
100% Waterproof
Simple Click
30 Years Domestic & 10 Years Commercial
Yes
R10
